G3 Frame
    Tizona

    G3 Frame

    Reference: G3Frame
    $3,750.00
    Tax included

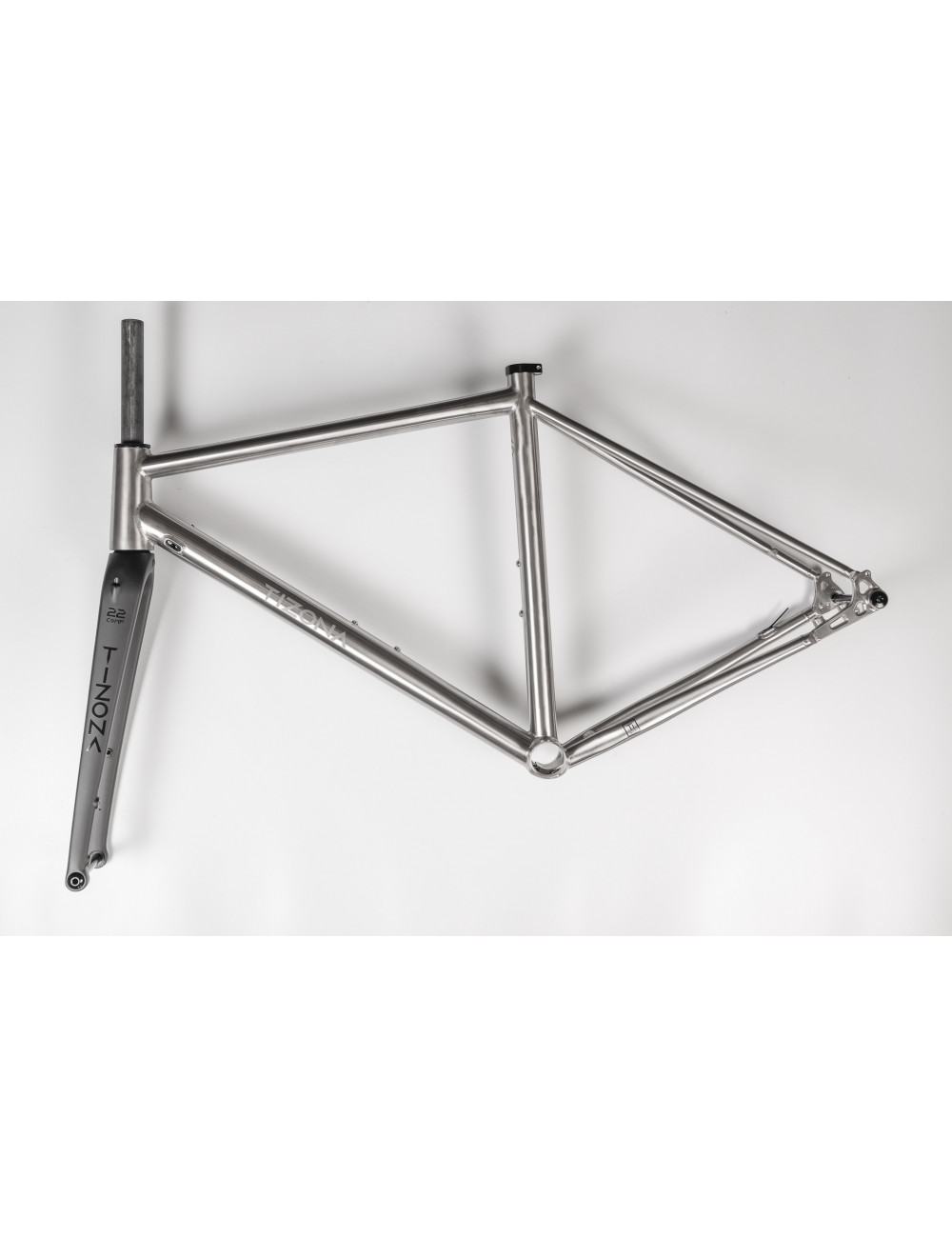

    The Tizona Gravel Bike (G3) is built with a titanium frame for unmatched durability and comfort on all terrains. Designed for off-road adventures, it features a wide-range drivetrain for seamless shifting, powerful hydraulic disc brakes, and gravel-specific carbon wheels with tubeless-ready tires. Ergonomic flared drop handlebars ensure control and comfort, while its versatile design handles everything from rugged trails to smooth roads. Whether you're bikepacking or commuting, the Tizona Gravel Bike is your go-to for exploration without limits.

    Size Guide
    Size Guide
    BIKE SIZE Road Frame
    Frame Size S M L
    A. Stack 523 547 577
    B. Reach 340 386 398
    C. Head tube angle 73 73 73.5
    D. Head Tube 115 140 170
    F. Seat Tube Angle 74 74 73
    G. Seat Tube 515 540 560
    H. Top Tube 522 539 562
    I. Effective Top Tube 530 549 575
    P. Chain Stay 410 410 410
    N. BB Drop 72 72 71
    BIKE SIZE Gravel Frame

    Frame Size S M L
    A. Stack 539 567 589
    B. Reach 372 377 390
    C. Head tube angle 71.5 71.5 72
    D. Head Tube 130 160 180
    F. Seat Tube Angle 73.5 73.5 73
    G. Seat Tube 495 515 540
    H. Top Tube 511 530 559
    I. Effective Top Tube 520 545 570
    P. Chain Stay 435 435 435
    N. BB Drop 67 67 65

    How to Choose Your Bike Size

    To ensure optimal comfort and performance, follow these steps to measure yourself for the correct bike size. Use a flexible measuring tape and take each measurement carefully.

    1. Height:

    Stand against a wall with your feet together and back straight. Have someone measure from the floor to the top of your head. Make sure you're standing flat-footed. This will give a general idea of your bike frame size.

    2. Inseam:

    Stand barefoot with your feet slightly apart. Place a book between your legs and push it up as far as comfortable, simulating the bike seat. Have someone measure from the top of the book to the floor. This measurement helps in determining your standover height, ensuring that you can comfortably straddle the bike.

    3. Arm Length:

    Extend one arm outward, parallel to the floor. Measure from your collarbone (just above the shoulder) to the middle of your palm. This measurement helps in adjusting the reach to the handlebars for comfort.

    4. Torso Length:

    Stand up straight and measure from the base of your neck (at the collarbone) to your groin. This helps in determining the bike's top tube length, making sure you have the right reach.

    5. Standover Height:

    This is the distance from the ground to the top of the bike's top tube. Ensure you have at least 1-2 inches of clearance when standing over the top tube with both feet flat on the ground.

    • Small
    • Medium
    • Large
    • Frame
    • Frameset
    Quantity
      In Stock

    reassuarence-customicon

    Security policy

    reassuarence-customicon

    Delivery policy

    reassuarence-customicon

    Return policy

    Tizona Gravel Bike: Titanium Durability for Boundless Exploration

    Embark on your next adventure with the Tizona Gravel Bike, crafted with a premium titanium frame designed for ultimate performance and durability. This versatile bike is built to handle a variety of terrains—from rugged trails to smooth roads—while maintaining the lightweight, resilient properties that titanium offers. Combining modern technology with a tough, lightweight frame, the Tizona Gravel Bike is perfect for riders who demand strength, endurance, and comfort.

    Frame & Durability

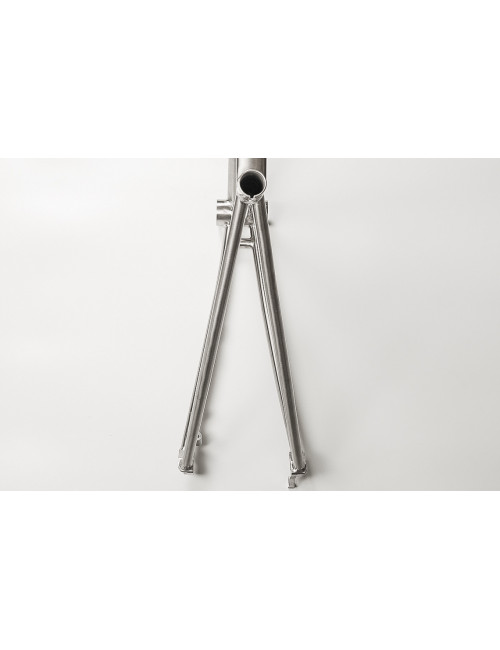

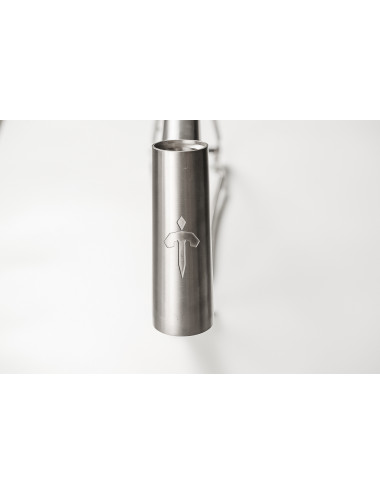

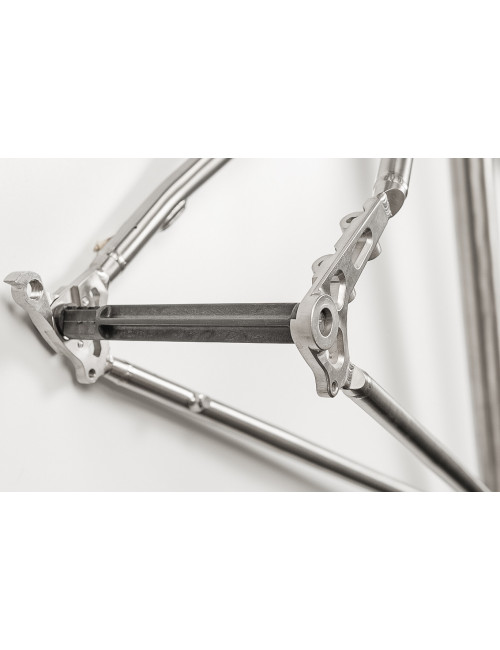

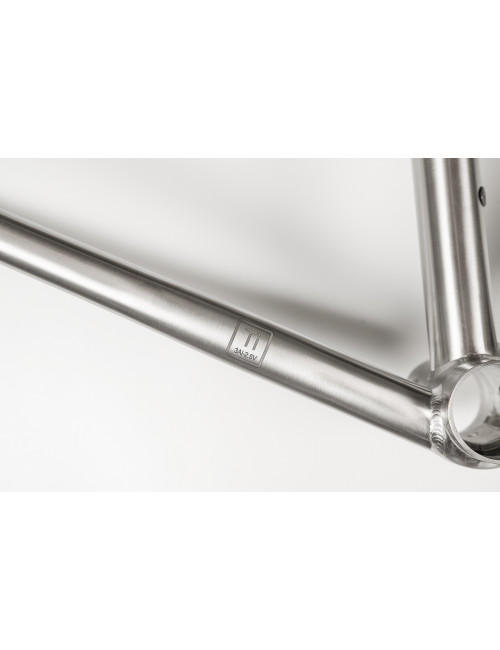

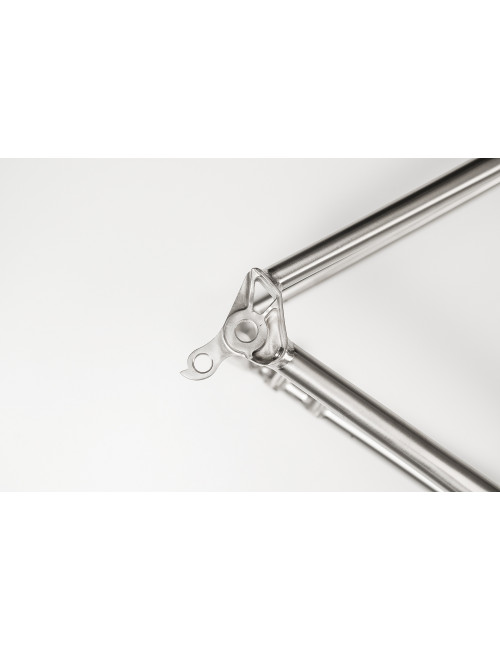

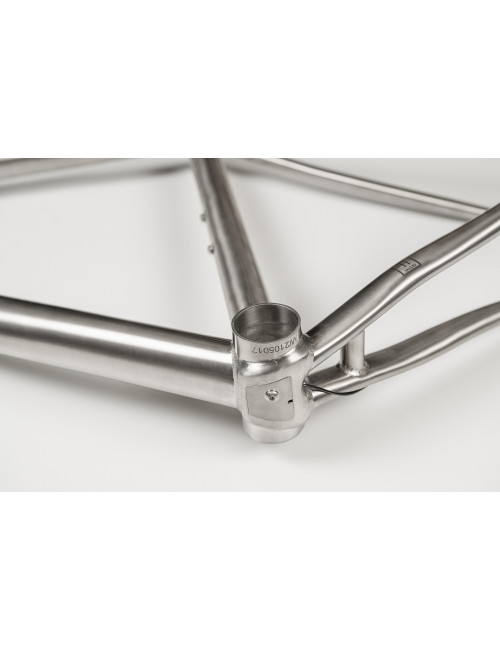

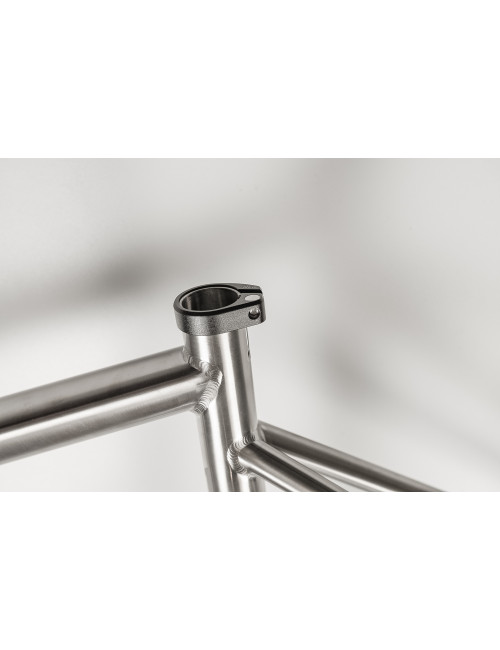

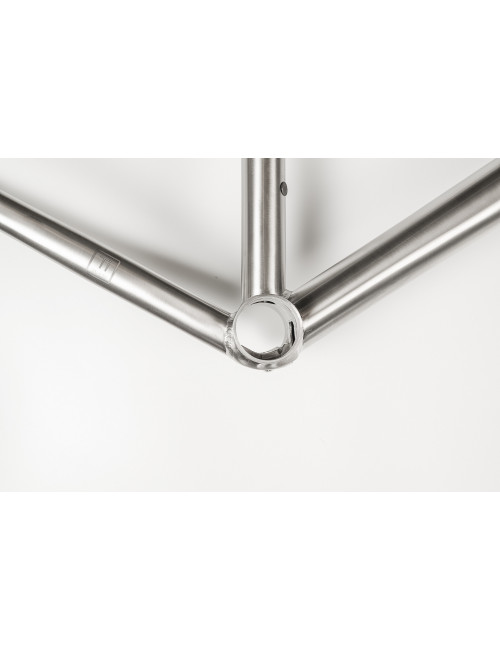

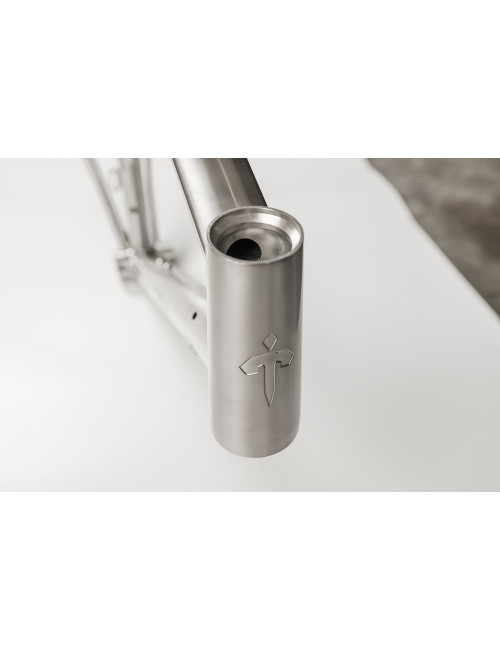

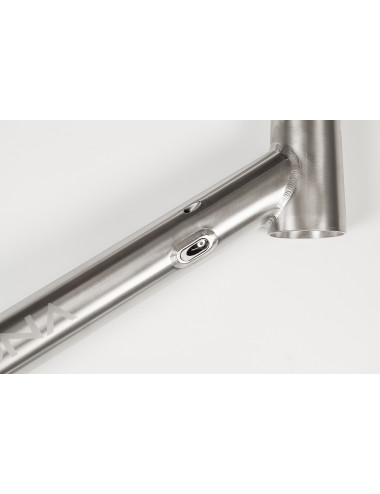

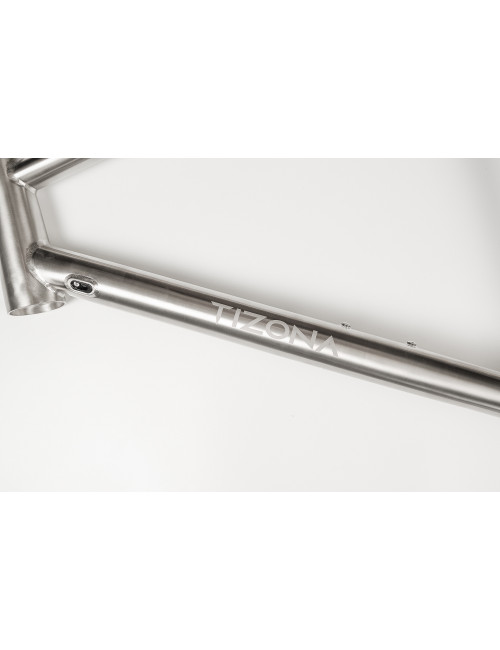

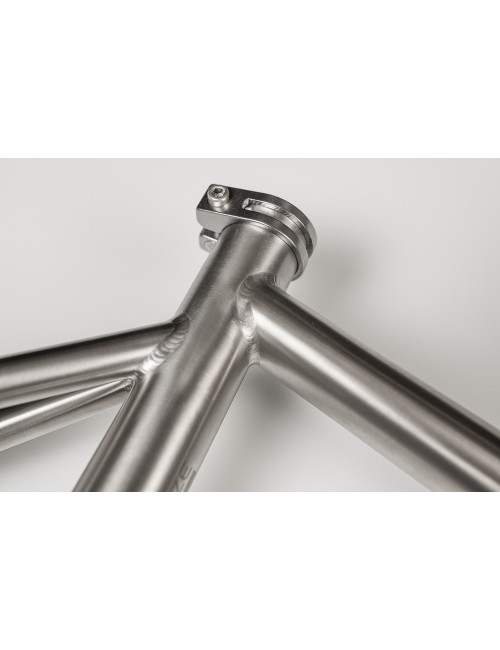

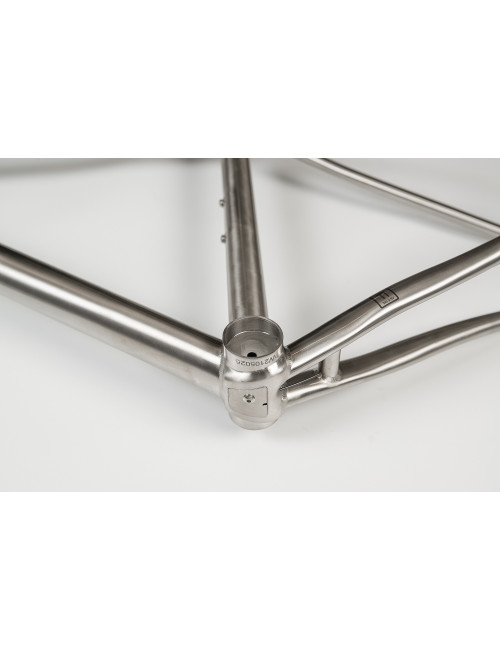

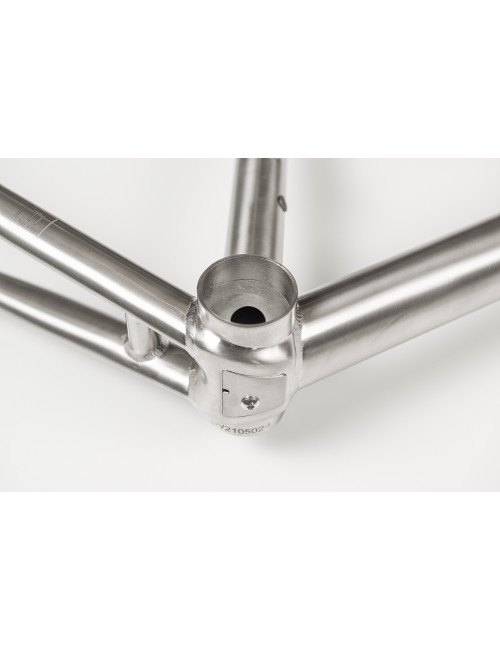

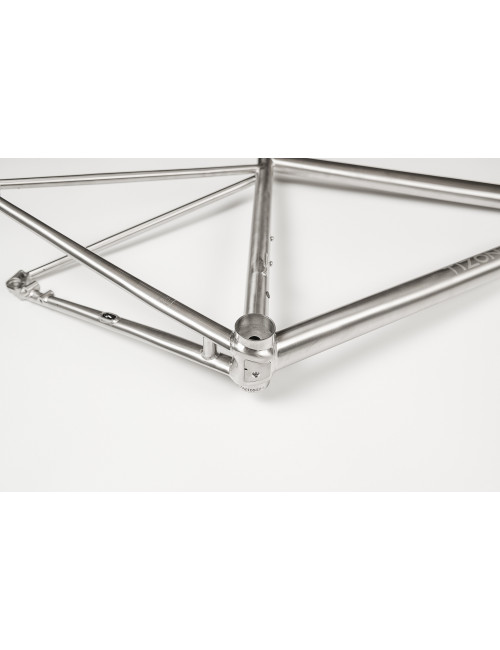

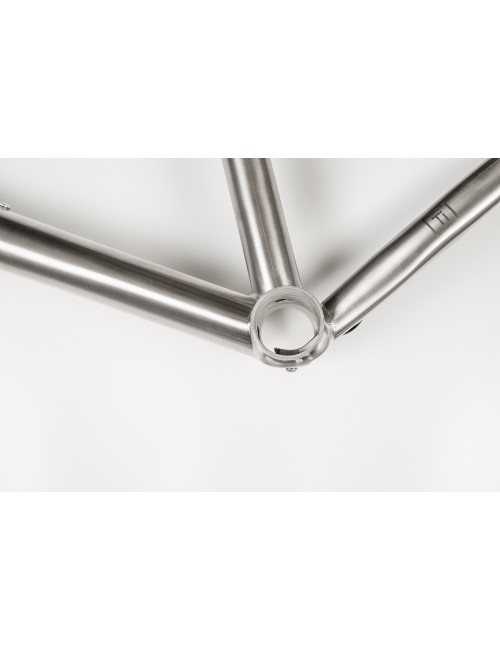

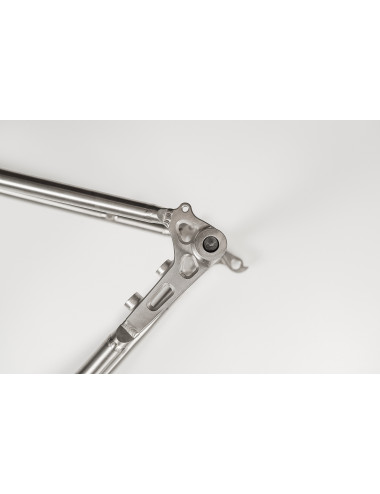

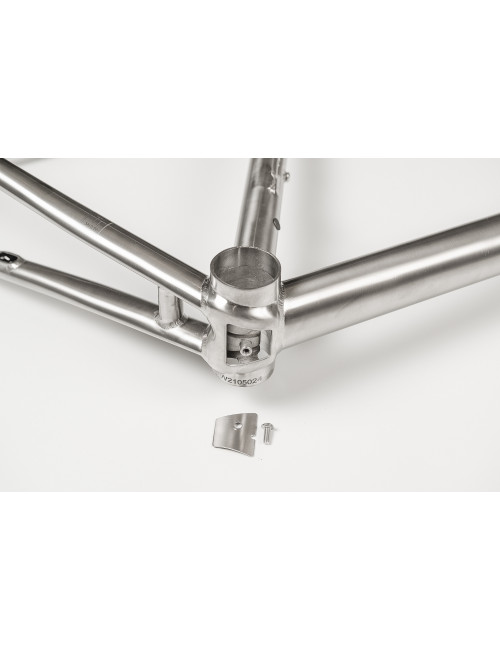

    The heart of the Tizona Gravel Bike is its titanium frame, known for its outstanding durability, corrosion resistance, and vibration absorption, ideal for rough gravel paths and long-distance rides. Titanium provides a perfect balance between lightweight agility and robust strength, ensuring that the bike performs smoothly and remains tough enough to handle any adventure. The fully integrated cable routing enhances performance and aesthetics, reducing drag while protecting cables from external elements. With its stable geometry, the bike delivers superior handling, giving you confidence and control over varied terrain.

    Drivetrain & Gearing
    Equipped with a wide-range drivetrain, the Tizona Gravel Bike excels in both climbs and fast descents. With precise and seamless shifting, you can maintain optimal performance regardless of the terrain. The integrated cable routing adds to the sleek design while keeping the gears running smoothly, ensuring that your bike remains durable and low-maintenance even in challenging environments.

    Braking System
    The Tizona Gravel Bike features powerful hydraulic disc brakes, offering exceptional stopping power and control in all conditions. Whether you're navigating steep gravel paths or making sudden stops, the brakes give you the reliability and safety needed to handle any situation. The integrated cables further streamline the design, enhancing the bike's clean, modern look while improving overall aerodynamics.

    Wheels & Tires
    Designed for gravel riding, the Tizona Gravel Bike is equipped with lightweight carbon wheels and wider, high-traction tires. These provide excellent grip and stability on loose surfaces while maintaining smooth rolling on roads. The tubeless-ready setup reduces the risk of punctures, improves comfort, and allows you to ride at lower tire pressures for better traction and control on rough terrain.

    Comfort & Versatility
    The Tizona Gravel Bike is designed with long-haul comfort in mind. Its flared drop handlebars offer multiple hand positions, improving control on rough terrain and reducing fatigue on long rides. With increased tire clearance and a titanium frame that absorbs road vibrations, this bike is adaptable to various surfaces and riding conditions. Customizable saddle height and handlebar positions allow for a tailored fit, ensuring maximum comfort and performance. The bike’s versatility makes it ideal for bikepacking, touring, commuting, and more.

    Key Features:

    • Lightweight and durable titanium frame with fully integrated cable routing
    • Wide-range drivetrain for optimal performance on varied terrain
    • Powerful hydraulic disc brakes for reliable stopping in all conditions
    • Gravel-specific carbon wheels with tubeless-ready tires for enhanced traction and durability
    • Ergonomic flared drop bars for superior comfort and control
    • Customizable fit for long-distance comfort and adaptability

    Whether you're exploring remote trails, commuting, or embarking on a multi-day bikepacking adventure, the Tizona Gravel Bike is designed to meet the demands of riders who seek new horizons. Built for durability and performance, its titanium frame and cutting-edge features ensure an unparalleled riding experience.

    Bike Geometry:

    Frame Size S M L
    A. Stack 539 567 589
    B. Reach 372 377 390
    C. Head Tube Angle 71.5 71.5 72
    D. Head Tube 130 160 180
    F. Seat Tube Angle 73.5 73.5 73
    G. Seat Tube 495 515 540
    H. Top Tube 511 530 559
    I. Effective Top Tube 520 545 570
    P. Chain Stay 435 435 435
    N. BB Drop 67 67 65

    Ensure you choose the right frame size for a perfect fit and optimal performance on your rides.

    Product Details

    50 Items

    Data sheet

    Weight
    1520g
