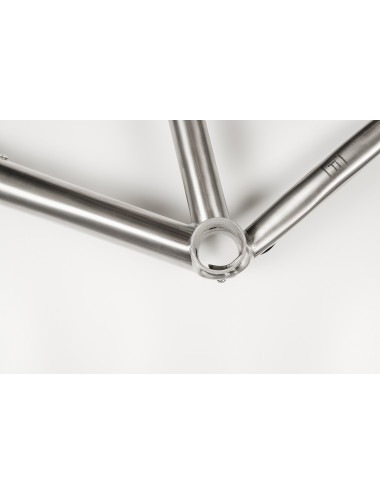

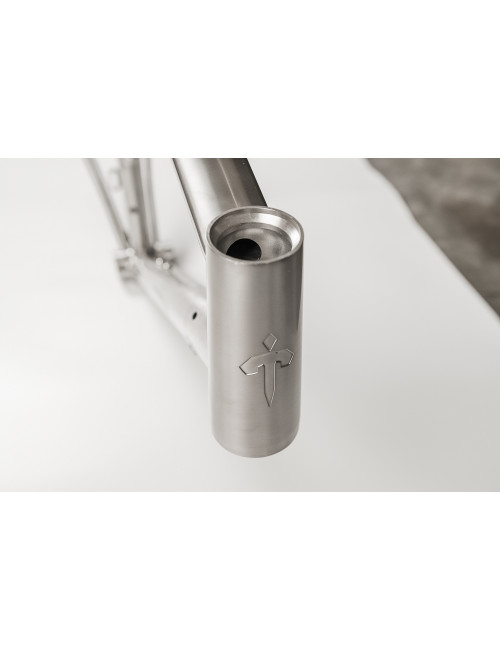

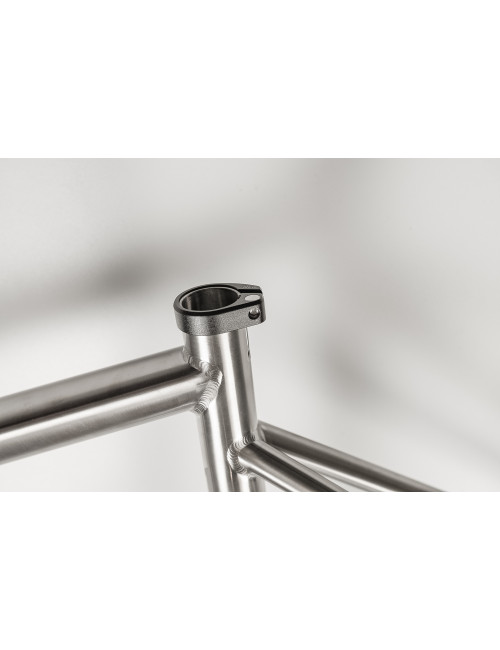

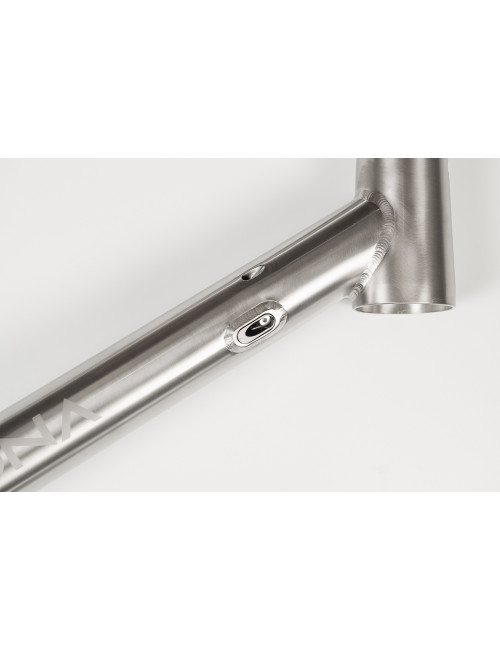

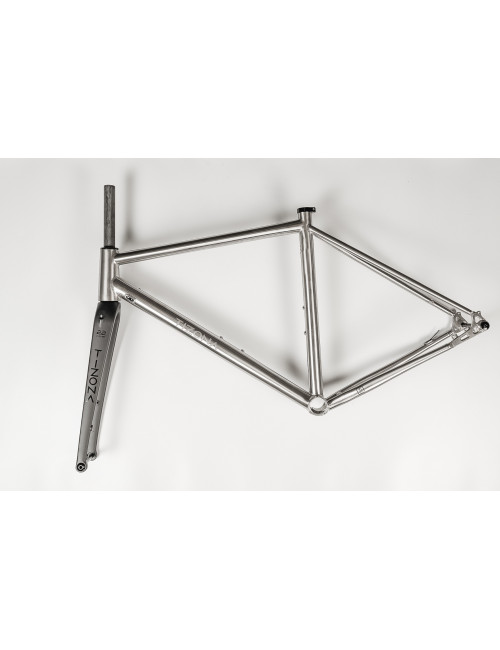

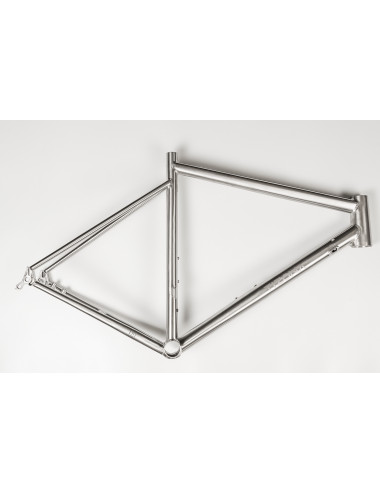

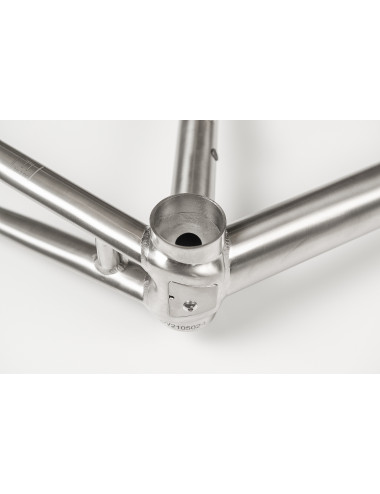

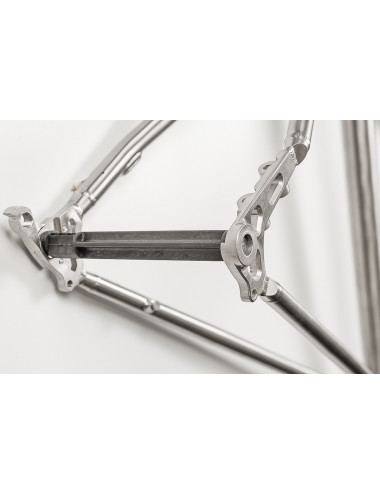

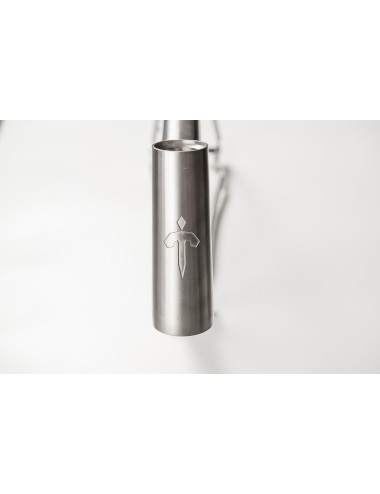

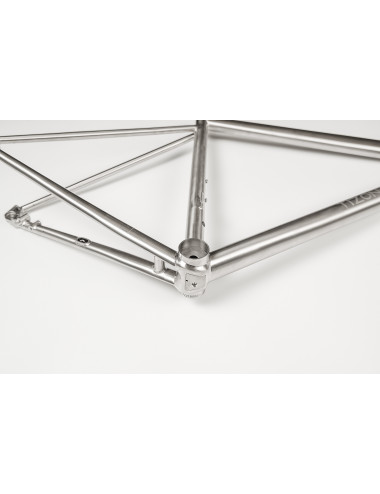

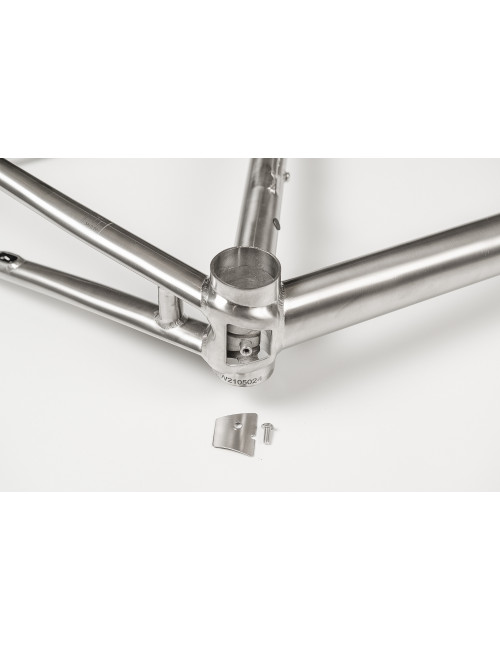

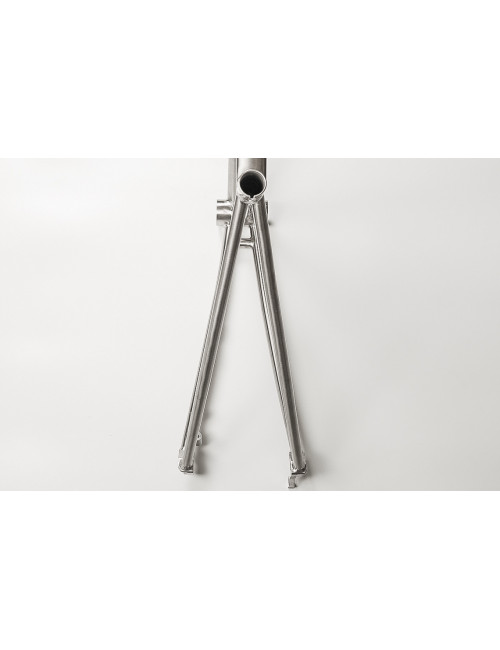

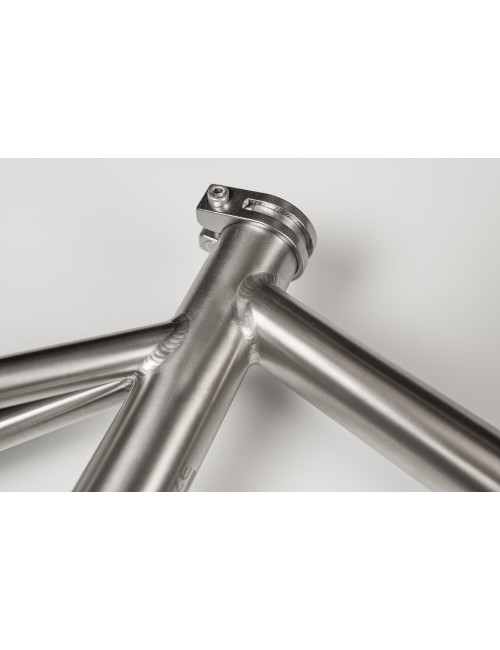

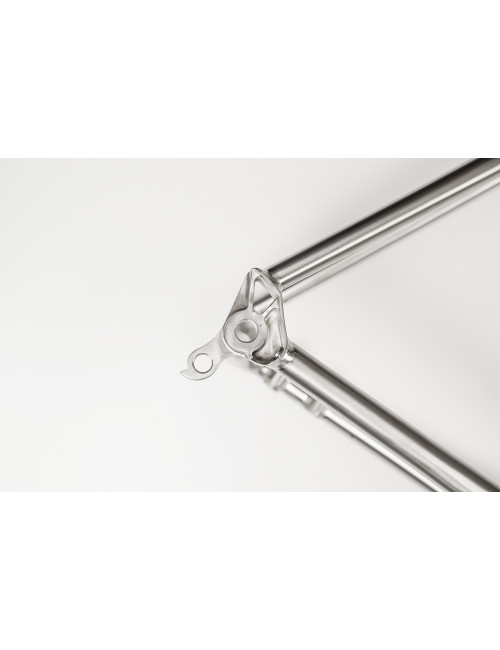

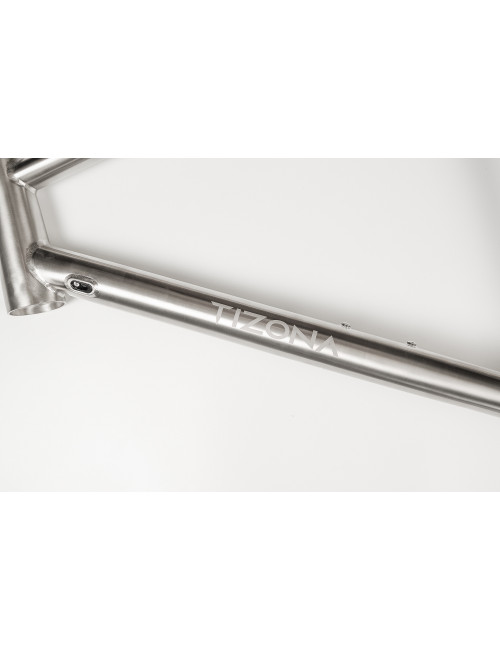

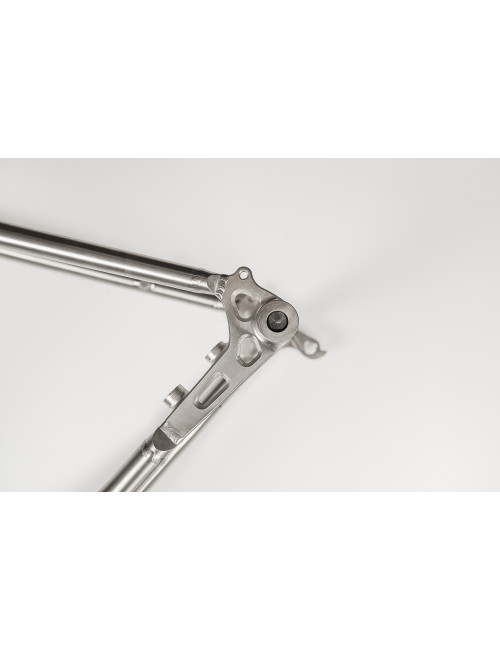

R3x Frame
    Tizona

    R3x Frame

    Reference: R1XFrameset
    $4,050.00
    Tax included

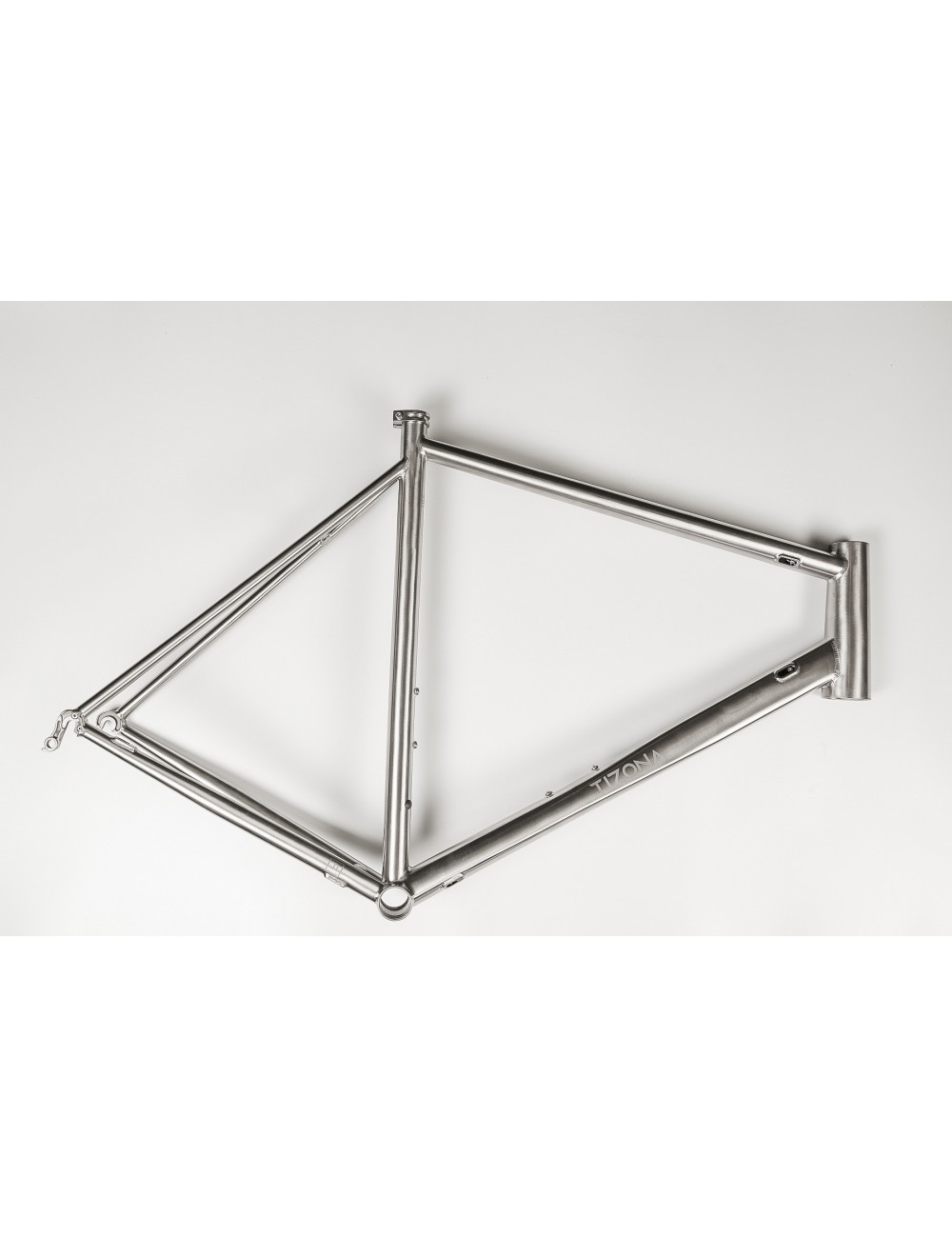

    The Tizona Road Bike (R3x) is crafted from lightweight, durable titanium, offering exceptional strength and a smooth ride. Featuring fully integrated cable routing, this bike combines sleek aesthetics with aerodynamic performance. Equipped with a premium groupset for precise shifting and hydraulic disc brakes for powerful stopping in all conditions, the Tizona excels on any terrain. Its carbon wheels, ergonomic handlebars, and customizable fit ensure comfort and control on long rides. Designed for riders who demand speed, durability, and style, the Tizona Road Bike delivers a top-tier cycling experience.

    Size Guide
    Size Guide
    BIKE SIZE Road Frame
    Frame Size S M L
    A. Stack 523 547 577
    B. Reach 340 386 398
    C. Head tube angle 73 73 73.5
    D. Head Tube 115 140 170
    F. Seat Tube Angle 74 74 73
    G. Seat Tube 515 540 560
    H. Top Tube 522 539 562
    I. Effective Top Tube 530 549 575
    P. Chain Stay 410 410 410
    N. BB Drop 72 72 71
    BIKE SIZE Gravel Frame

    Frame Size S M L
    A. Stack 539 567 589
    B. Reach 372 377 390
    C. Head tube angle 71.5 71.5 72
    D. Head Tube 130 160 180
    F. Seat Tube Angle 73.5 73.5 73
    G. Seat Tube 495 515 540
    H. Top Tube 511 530 559
    I. Effective Top Tube 520 545 570
    P. Chain Stay 435 435 435
    N. BB Drop 67 67 65

    How to Choose Your Bike Size

    To ensure optimal comfort and performance, follow these steps to measure yourself for the correct bike size. Use a flexible measuring tape and take each measurement carefully.

    1. Height:

    Stand against a wall with your feet together and back straight. Have someone measure from the floor to the top of your head. Make sure you're standing flat-footed. This will give a general idea of your bike frame size.

    2. Inseam:

    Stand barefoot with your feet slightly apart. Place a book between your legs and push it up as far as comfortable, simulating the bike seat. Have someone measure from the top of the book to the floor. This measurement helps in determining your standover height, ensuring that you can comfortably straddle the bike.

    3. Arm Length:

    Extend one arm outward, parallel to the floor. Measure from your collarbone (just above the shoulder) to the middle of your palm. This measurement helps in adjusting the reach to the handlebars for comfort.

    4. Torso Length:

    Stand up straight and measure from the base of your neck (at the collarbone) to your groin. This helps in determining the bike's top tube length, making sure you have the right reach.

    5. Standover Height:

    This is the distance from the ground to the top of the bike's top tube. Ensure you have at least 1-2 inches of clearance when standing over the top tube with both feet flat on the ground.

    • Small
    • Medium
    • Large
    • Frame
    • Frameset
    Quantity
      In Stock

    reassuarence-customicon

    Security policy

    reassuarence-customicon

    Delivery policy

    reassuarence-customicon

    Return policy

    Tizona Road Bike: Titanium Excellence Meets Cutting-Edge Integration

    Experience the ultimate ride with the all-new Tizona Road Bike, engineered with a premium titanium frame and fully integrated cables for a sleek, modern aesthetic. Designed for cyclists who demand top-tier performance, this bike combines the strength and durability of titanium with advanced features that enhance speed, control, and comfort. Whether you're pushing your limits in a race or enjoying long-distance rides, the Tizona Road Bike delivers a flawless riding experience every time.

    Frame & Design

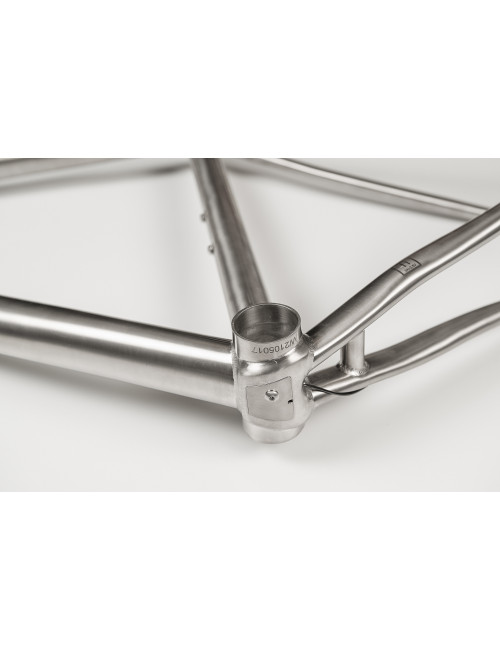

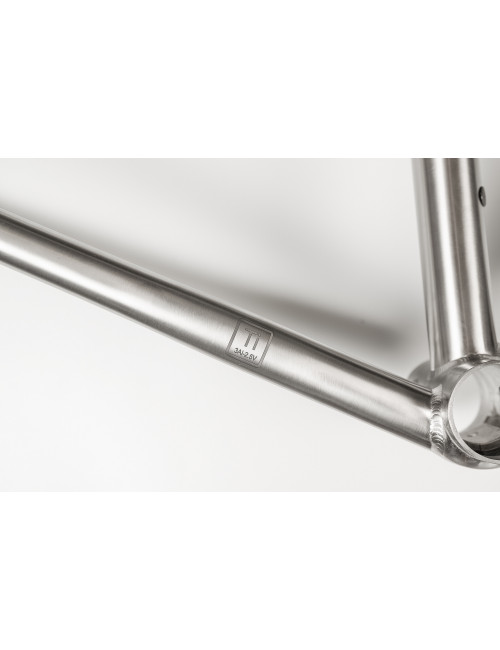

    The Tizona Road Bike is built with a high-grade titanium frame, known for its unparalleled strength, durability, and smooth ride quality. Lighter than steel and more durable than aluminum, titanium offers a perfect balance of weight and strength, making it an ideal material for road cycling. The frame is also corrosion-resistant, ensuring that your bike will stand the test of time. The fully integrated cable routing design gives the bike a clean, streamlined look, improving aerodynamics and protecting cables from the elements. With its refined geometry, the Tizona Road Bike provides optimal control, responsiveness, and comfort, no matter the terrain.

    Drivetrain & Gearing
    Equipped with a premium groupset, the Tizona Road Bike offers crisp, precise shifting for effortless transitions between gears. The wide-range drivetrain is designed to handle everything from high-speed flats to challenging climbs, making this bike ideal for versatile riding conditions. The fully integrated cables not only enhance the bike’s sleek appearance but also reduce maintenance needs by protecting the cables from wear and tear.

    Braking System
    Featuring high-performance hydraulic disc brakes, the Tizona Road Bike provides reliable, powerful stopping power in all weather conditions. The brakes are paired with internally routed cables for a cleaner aesthetic and improved aerodynamics. Whether you're navigating fast descents or making quick stops in city traffic, the braking system delivers unmatched control and confidence.

    Wheels & Tires
    Lightweight carbon wheels and high-performance tires combine to deliver exceptional speed and grip. Designed for efficient rolling and superior cornering, the wheels are engineered to maintain momentum while providing excellent traction, even on tight turns. The tubeless-ready tires reduce the risk of flats and enhance comfort, making this bike perfect for long-distance rides on varied road surfaces.

    Comfort & Customization
    With the rider’s comfort in mind, the Tizona Road Bike features ergonomic handlebars and a supportive saddle to minimize fatigue on long rides. The fully integrated cable routing keeps the cockpit clean and clutter-free, offering better handling and a more comfortable grip. The bike’s adjustable features allow riders to fine-tune the saddle height and handlebar position for a perfect fit, ensuring maximum comfort on every ride.

    Key Features:

    • Durable and lightweight titanium frame with fully integrated cable routing
    • High-performance hydraulic disc brakes for exceptional control
    • Smooth and precise shifting with a premium groupset
    • Aerodynamic design with hidden cables for reduced drag
    • Ergonomic handlebars and customizable fit for long-distance comfort

    With its titanium frame, fully integrated cables, and top-notch components, the Tizona Road Bike is the perfect blend of strength, elegance, and performance. This bike is built for those who value durability, efficiency, and style in every ride.

    Bike Sizing Chart:

    Frame Size (cm) Rider Height (cm) Inseam (cm) Handlebar Width (cm) Stem Length (mm)
    48 158 - 165 73 - 76 40 90
    51 165 - 173 76 - 80 42 100
    54 173 - 180 80 - 84 44 110
    56 180 - 188 84 - 88 44 120
    58 188 - 193 88 - 91 46 130
    61 193+ 91+ 46 140

    Choose the correct frame size to ensure a perfect fit and optimal performance.

    Product Details

    50 Items

    Data sheet

    Width
    1490g
